The TMP117 Precision Temperature Sensor is an I2C temperature sensor that will help you easily add temperature measurement and adjustment to your project.
In addition to the obvious support for reading the temperature, the TMP117 can also monitor the temperature and alert you when corrective action needs to be taken.
Adafruit use the TMP117 (not N or M) variant, which has 16-bit / 0.0078°C measurement resolution, wide operating range of -55 to 155°C, and up to ±0.1°C accuracy. The chip also has high and low temperature alerts and interrupt support, and hardware support required for NIST traceability, this temperature sensor is perfect for applications where you need to keep a close eye on temperature. The manufacturer, Texas Instruments, suggests it for use in sensitive applications like thermostats and cold chain asset tracking, or even gas and heat meters!
TMP117 temperature sensor has different accuracy for different ranges, here's what you can expect as the maximum variation for popular temperature ranges:
- ±0.1°C (maximum) from –20°C to 50°C
- ±0.15°C (maximum) from –40°C to 70°C
- ±0.2°C (maximum) from –40°C to 100°C
- ±0.25°C (maximum) from –55°C to 125°C
- ±0.3°C (maximum) from –55°C to 150°C

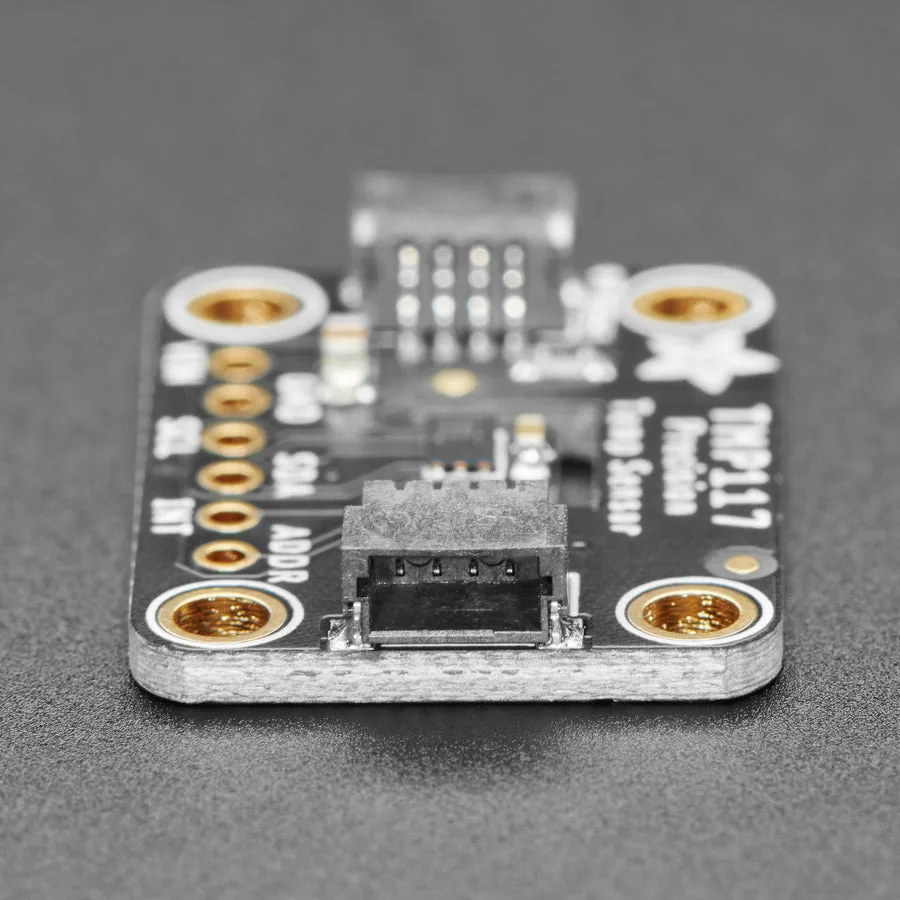

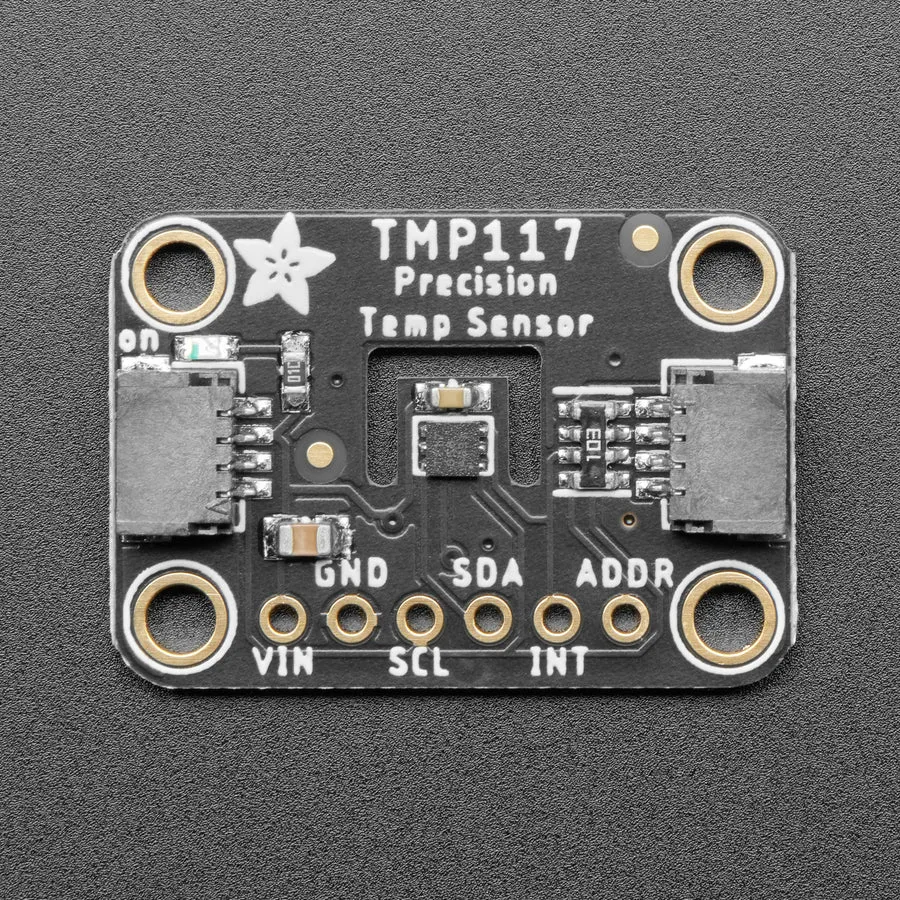

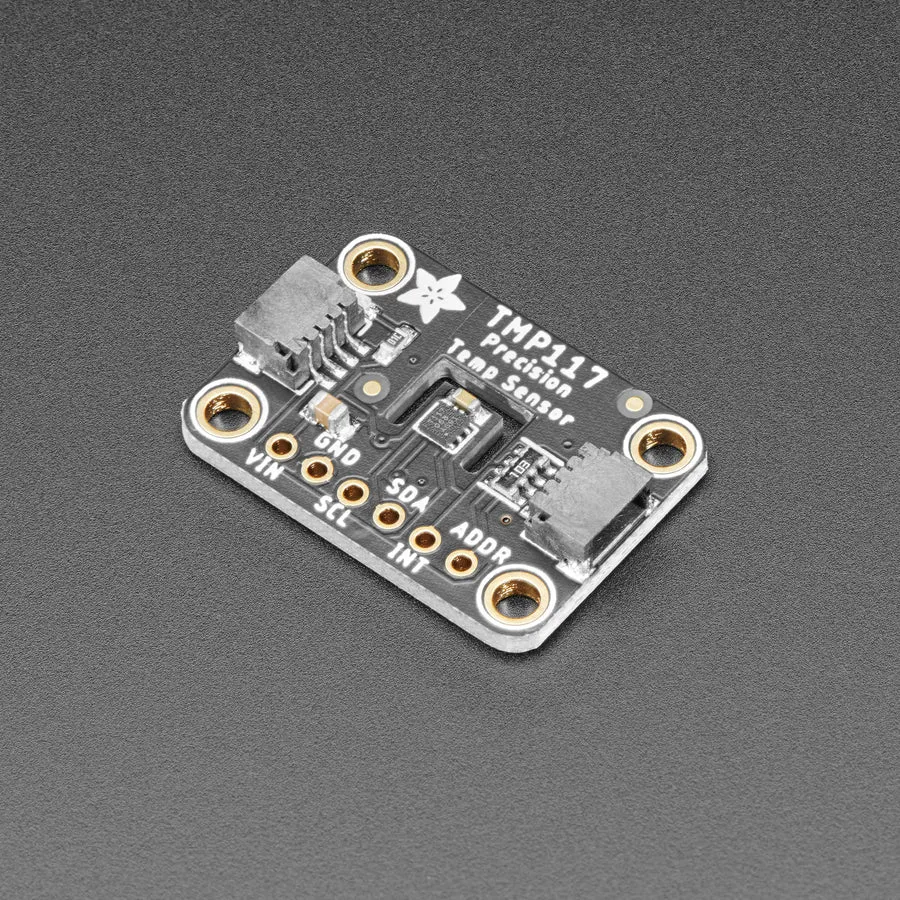

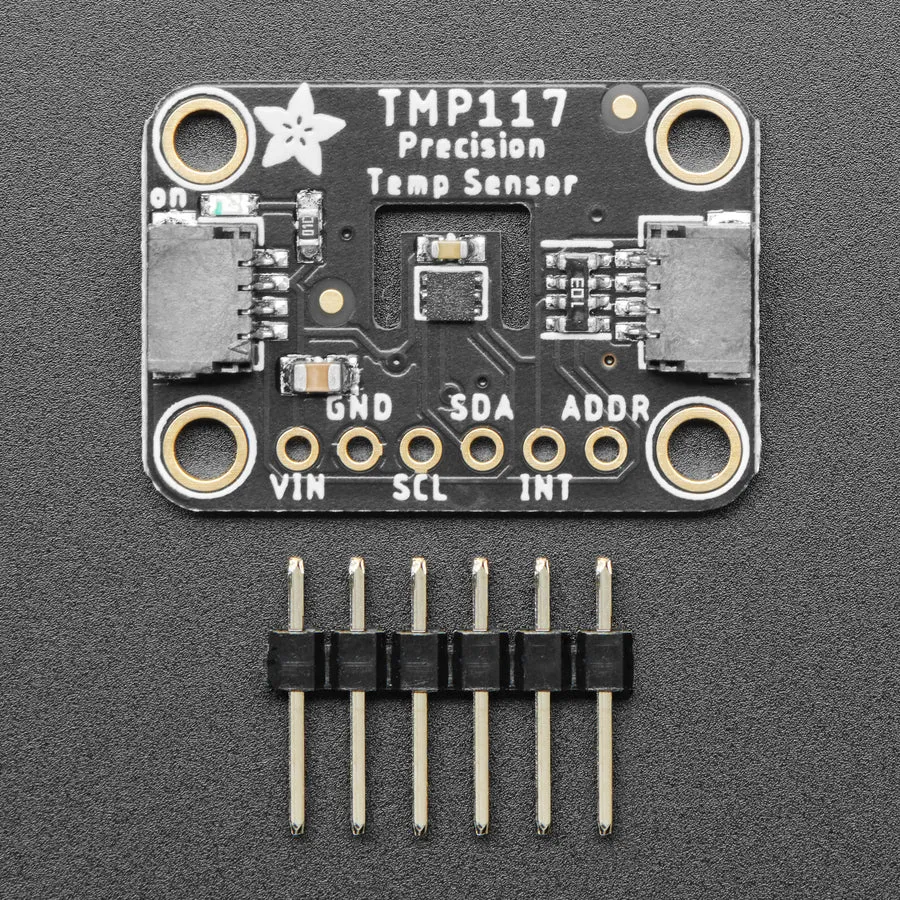

To make using it as easy as possible, Adafruit have put the TMP117 on a breakout PCB in the with a sprinkle of support circuitry to give you options when testing. You can either use a breadboard or the compatible , and compatibility with 5V voltage levels as commonly found on Arduinos, as well as 3.3V logic used by many other boards like the Raspberry Pi or our Feathers. QT Cable is not included, but
To get started, all you need to do is look over the page to familiarize yourself with the board, and then
TECHNICAL DETAILS

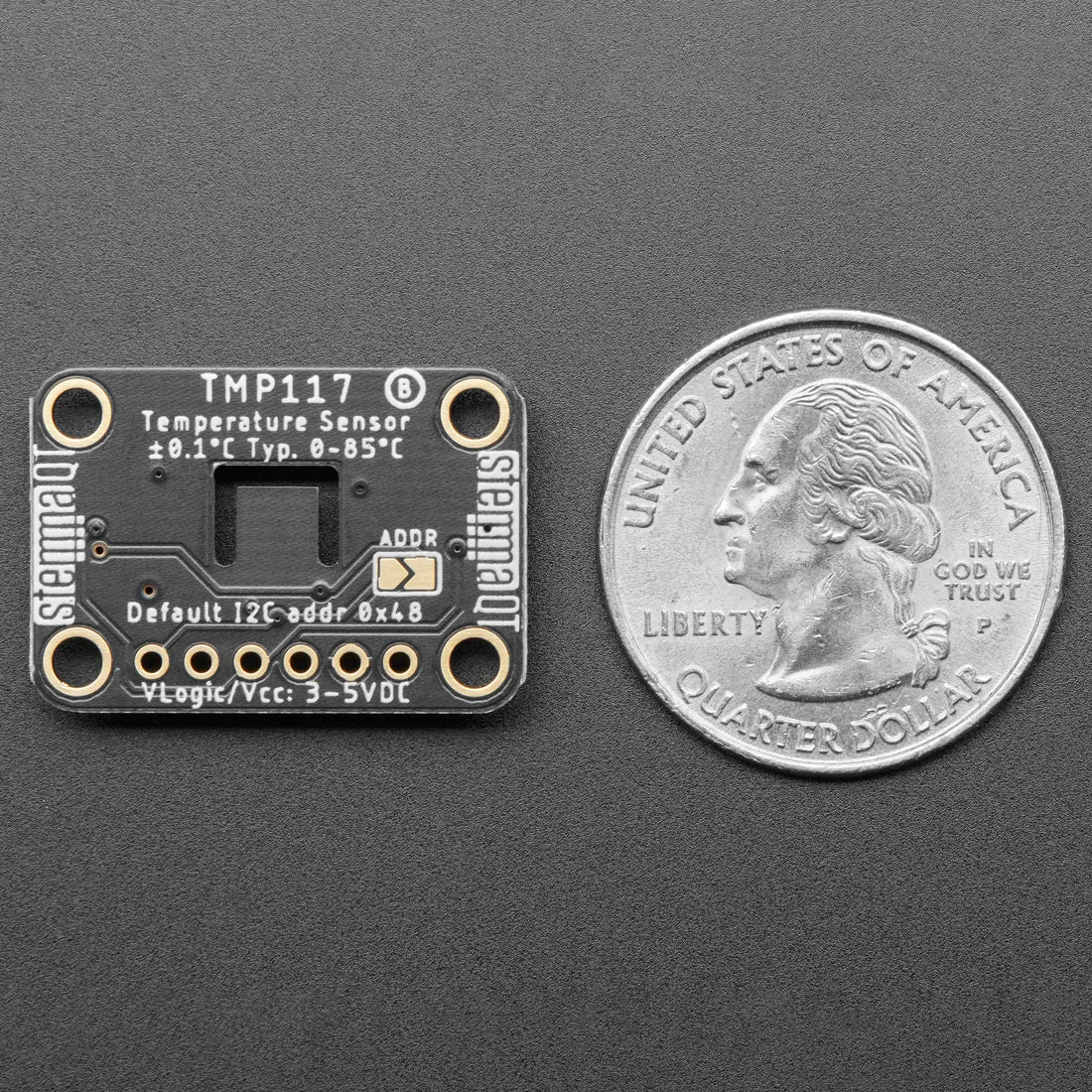

Product Dimensions: 25.5mm x 17.7mm x 4.6mm / 1.0" x 0.7" x 0.2"
