Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Contact Form | DPDT |
| Current Rating | 8 A |
| Function | Flasher (Recycler) |
| Maximum Operating Temperature | 60 C |
| Minimum Operating Temperature | -20 C |
| Mounting Type | Socket Mount |
| Number of Pins | 8 Pin |
| Power Rating | 2000/80 VA/W |
| Product Header | Electronic Plug-In Timer |
| Relay Type | Mechanical Relay |
| Series | |
| Standards | UL, cUL, CSA, CE |

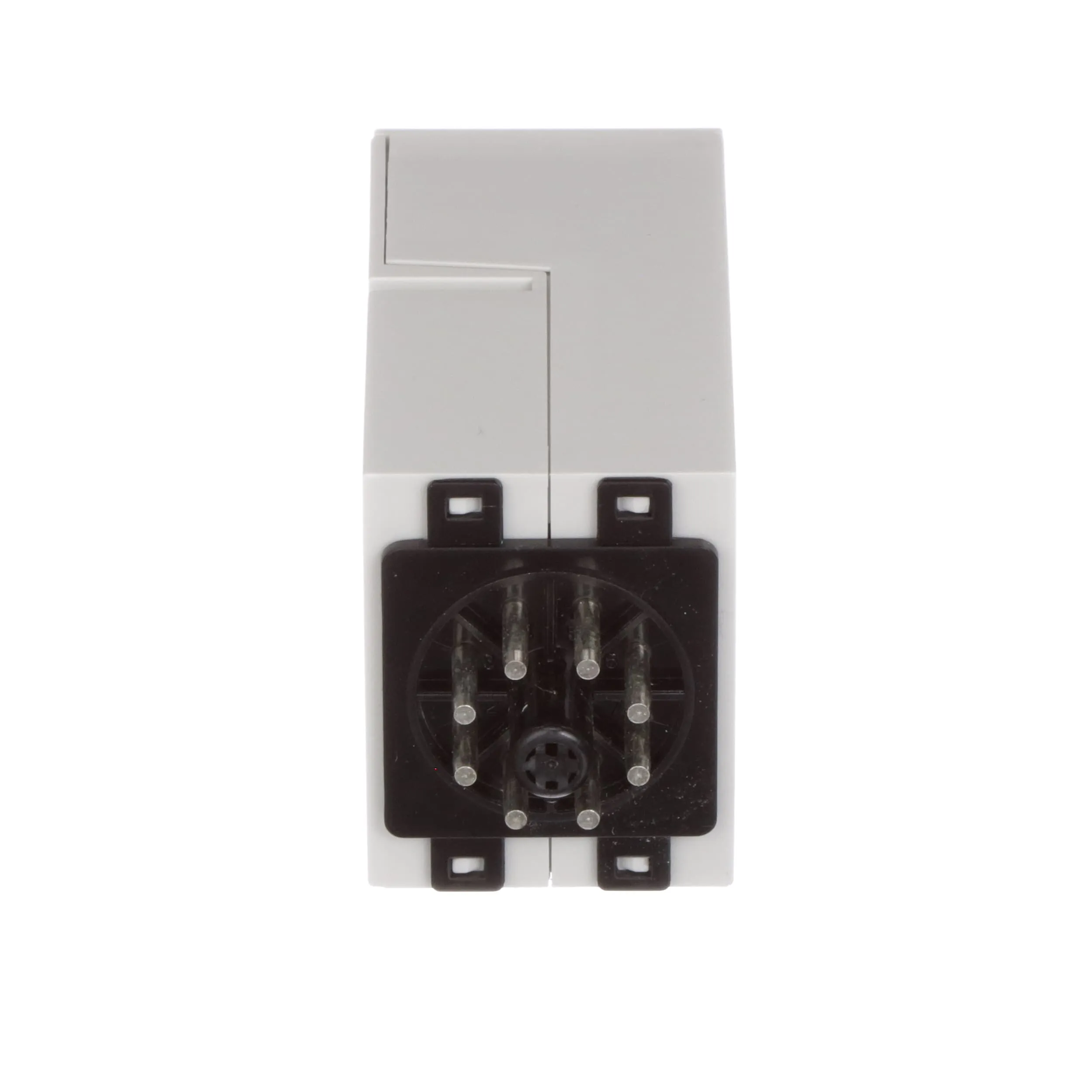

| Termination | 8-Pin Octal |
| Timing Range | 0.1 Sec. to 100 Hrs. |
| Voltage Rating | 250 V |
| Voltage, Control | 24-240 VAC ; 24 VDC |
| Voltage, Switching | 8A @ 250VAC |
Overview
Chronos 2 is a new complete range of timers for which several patents have been obtained. Both consistent and innovative in design, it responds to market requirements. For ease of use, all parameters can be set on the front face, using rotary switches to select any of its 10 functions and seven timing ranges. The face also incorporates a display of the preset time and LED status indicators. The products demonstrate our concern for the environment, using green materials throughout — Cadmium-free relay contacts, laser-etched front and side face, avoiding the use of solvents, etc. One LED status indicator, one or two electromechanical relay outputs, three single function units available, 8-pin plug in. Features:
