INCLUDES:
• (2) AAA Batteries
• (1) Red Remote

FEATURES:
• Tests and maps coaxial cable
• Simple push-button operation for wire tracing
• Easy to read LED panel indicates PASS, OPEN, or SHORT conditions and simplifies cable identification
• Remote #1 (red) is included with this tester; additional remotes also available (Cat. No. VDV512-110)
• Color coded push-on remotes allow for up to four cables to be tested and mapped (sold separately)
• Upgrade Remote Kit VDV512-110 (sold separately), includes holder with 4 remotes and F adapter

SPECIFICATIONS:
• Overall Height: 1" (25.4 mm)
• Application: Wire Tracing of Coaxial Cables
• Included: Batteries, Red Remote
• Overall Length: 5.75" (146.1 mm)
• Overall Width: 1.25" (31.8 mm)
• Connection & Adapter Types: Coax F Adapters
• Location ID: 1

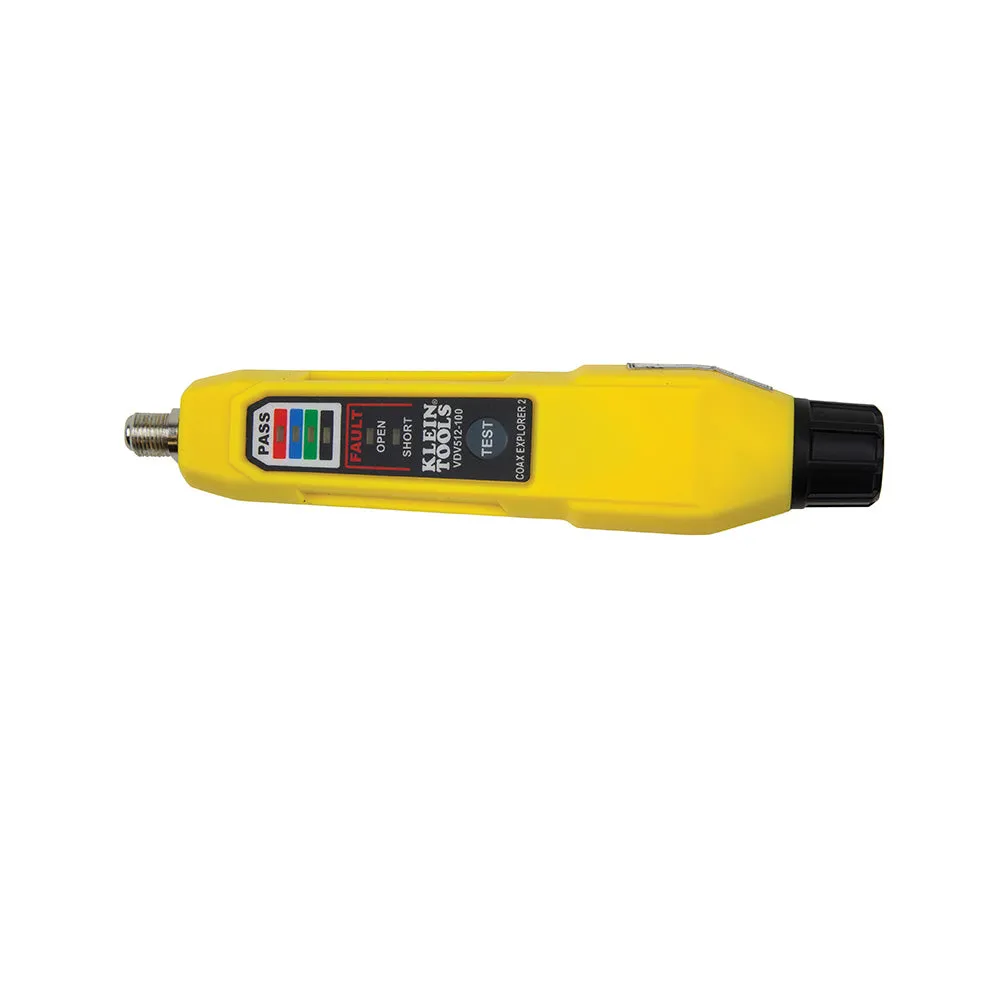

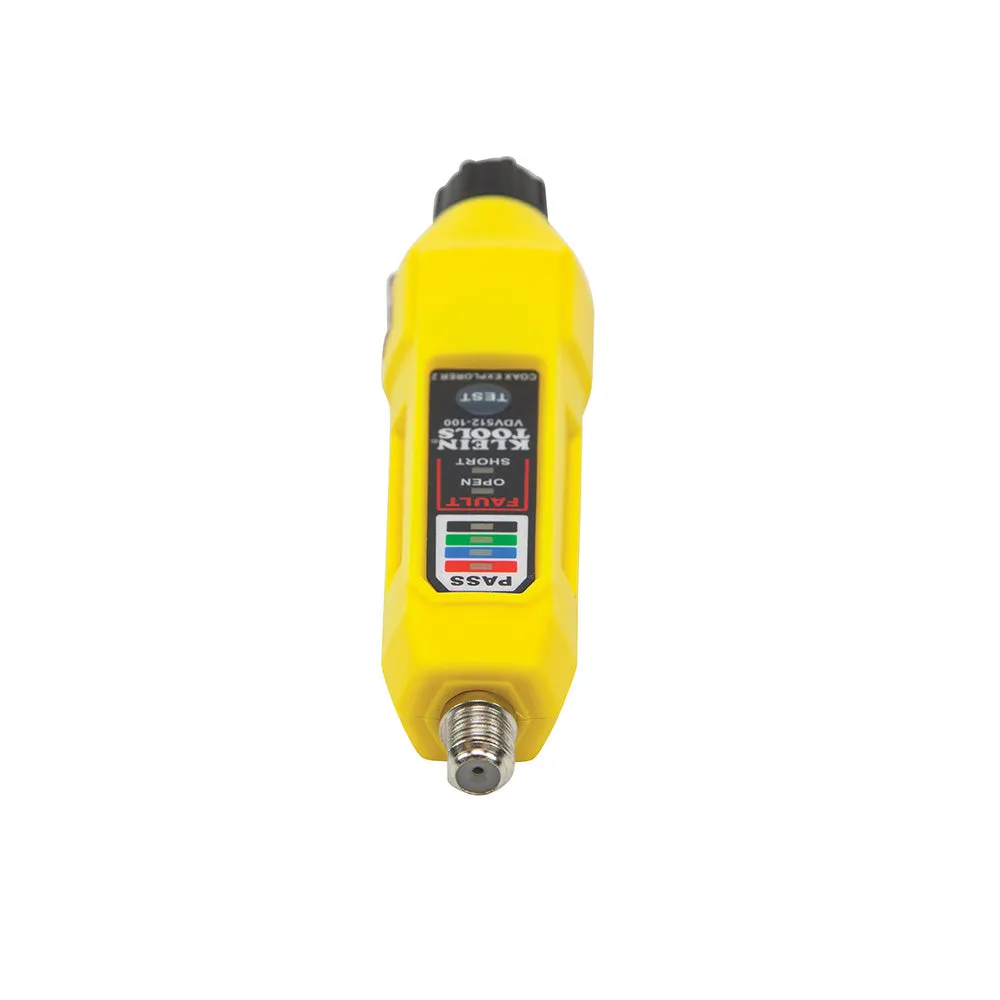

The Klein Tools Coax Explorer® 2 verifies proper continuity of F-connector coaxial cables and maps their location. This tester comes with one (red) remote. The available color-coded remotes (sold separately) allow for up to four cables to be tested and mapped, displaying cable status via LED indicators - PASS, OPEN, or SHORT - that also identify the cable/remote location. This compact tester fits in your pocket.
