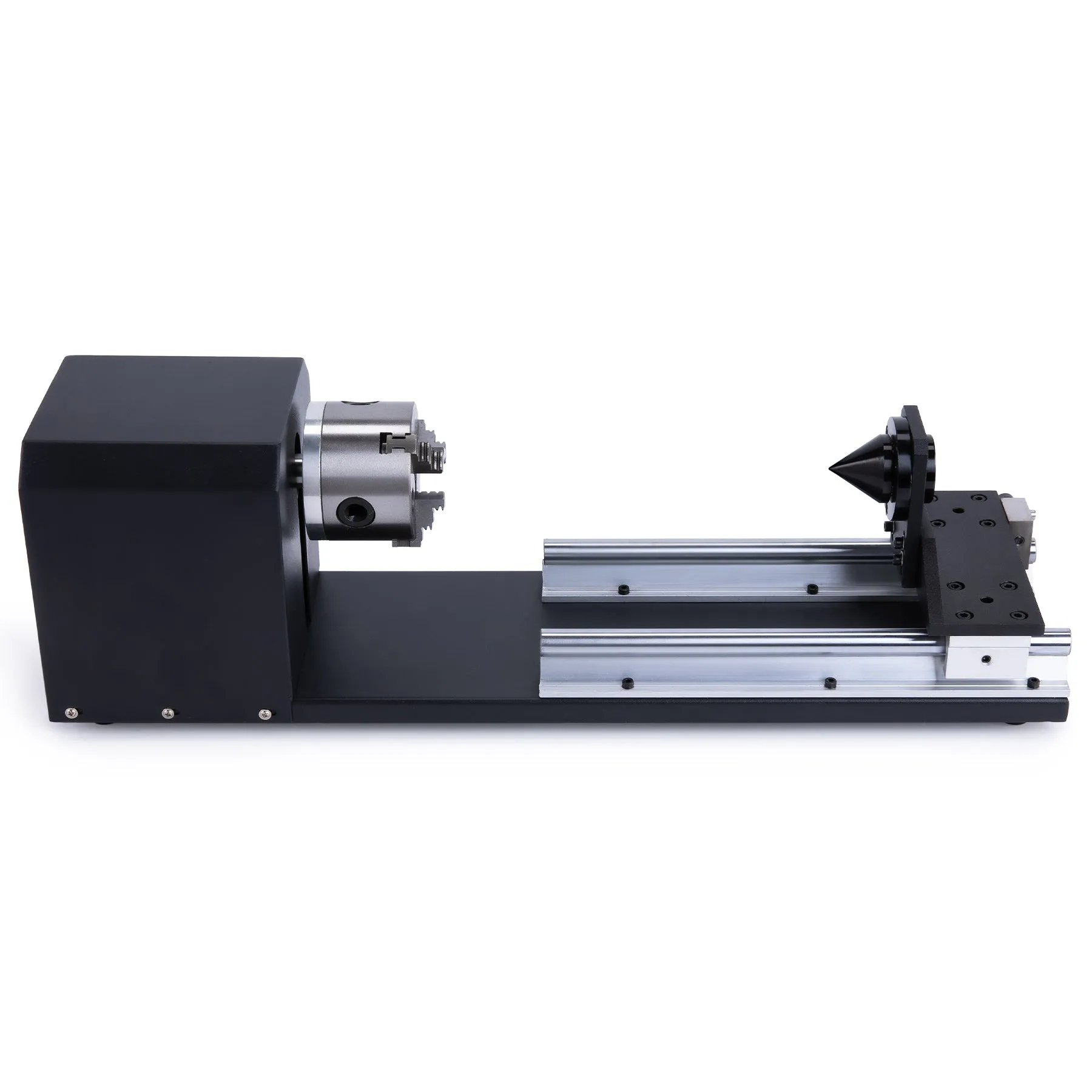

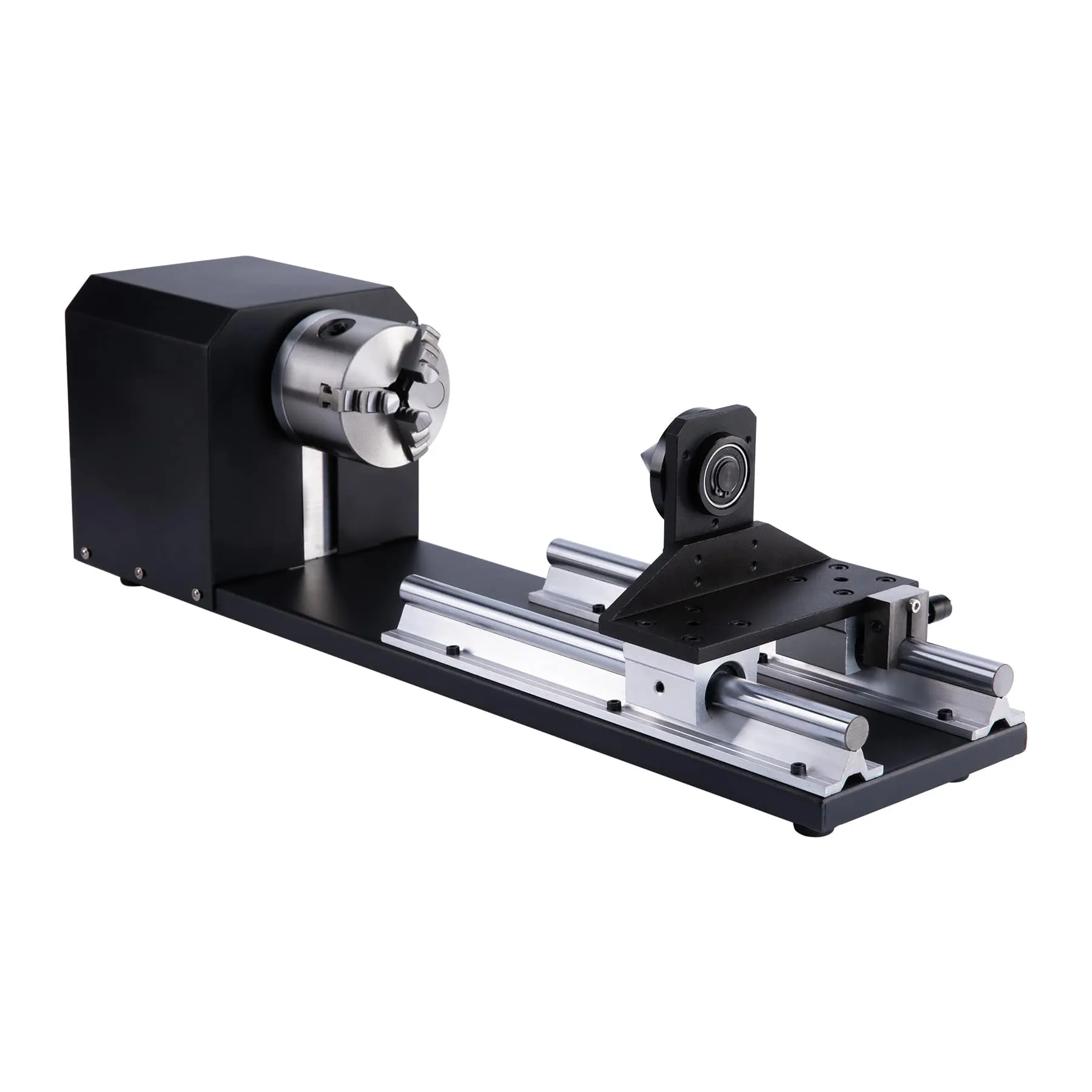

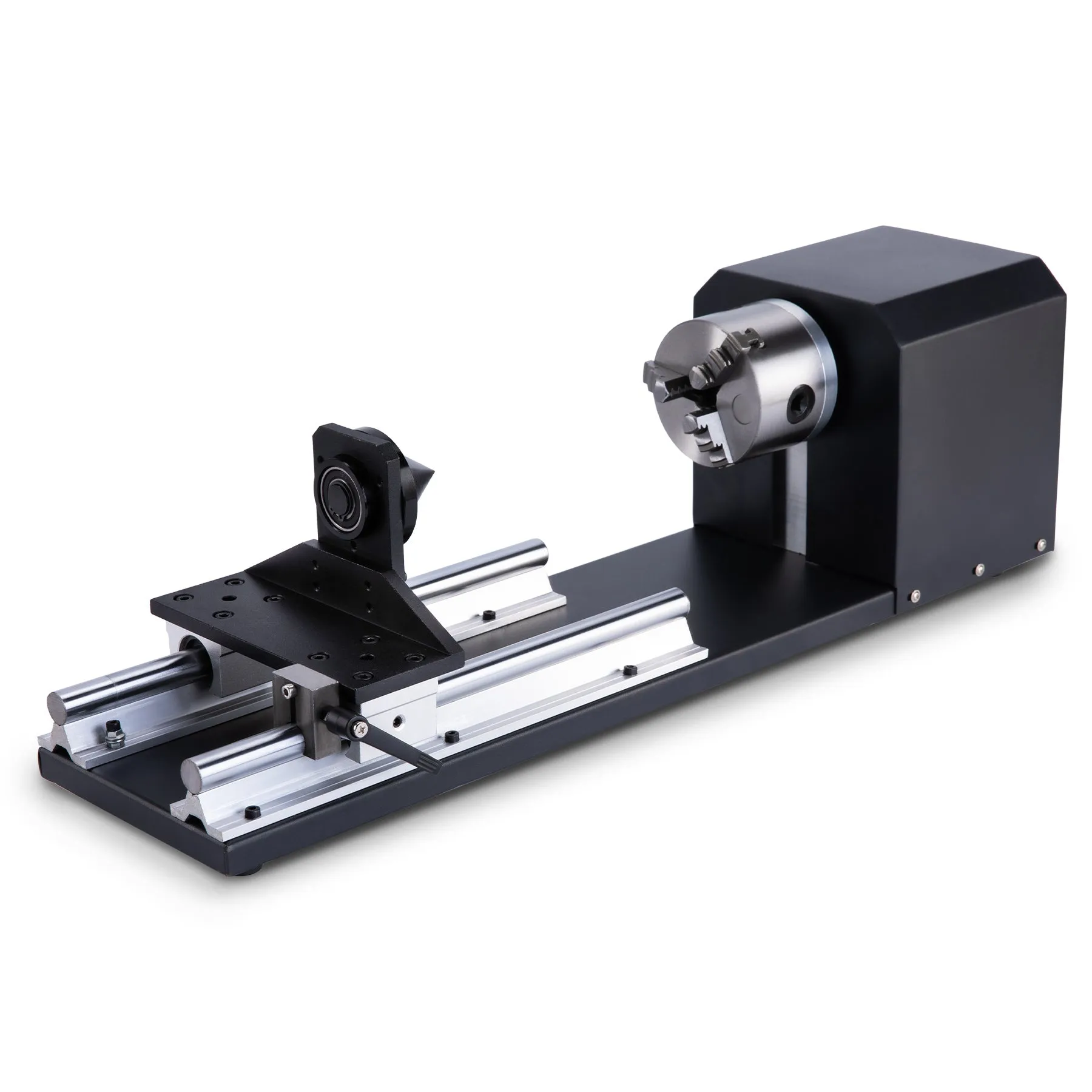

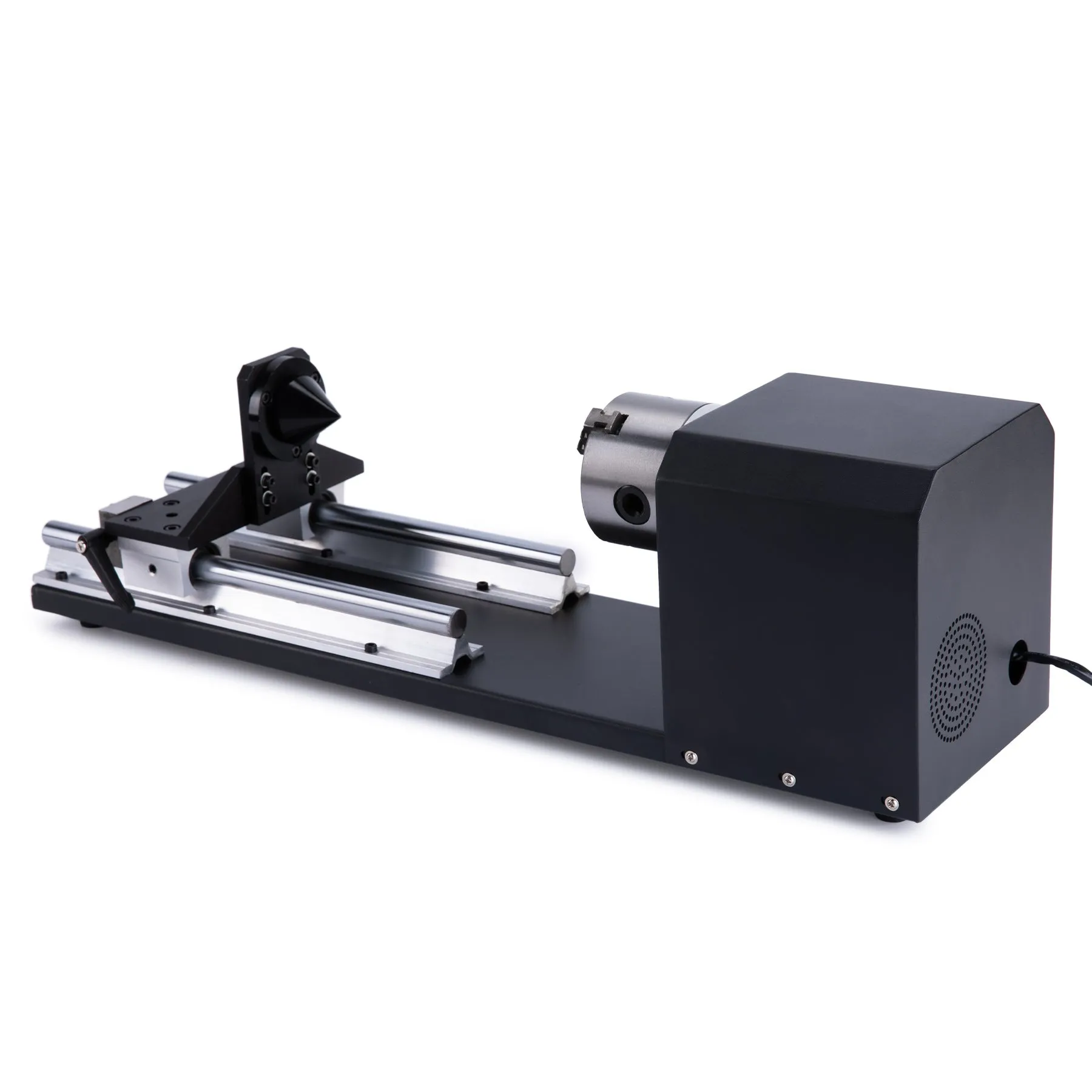

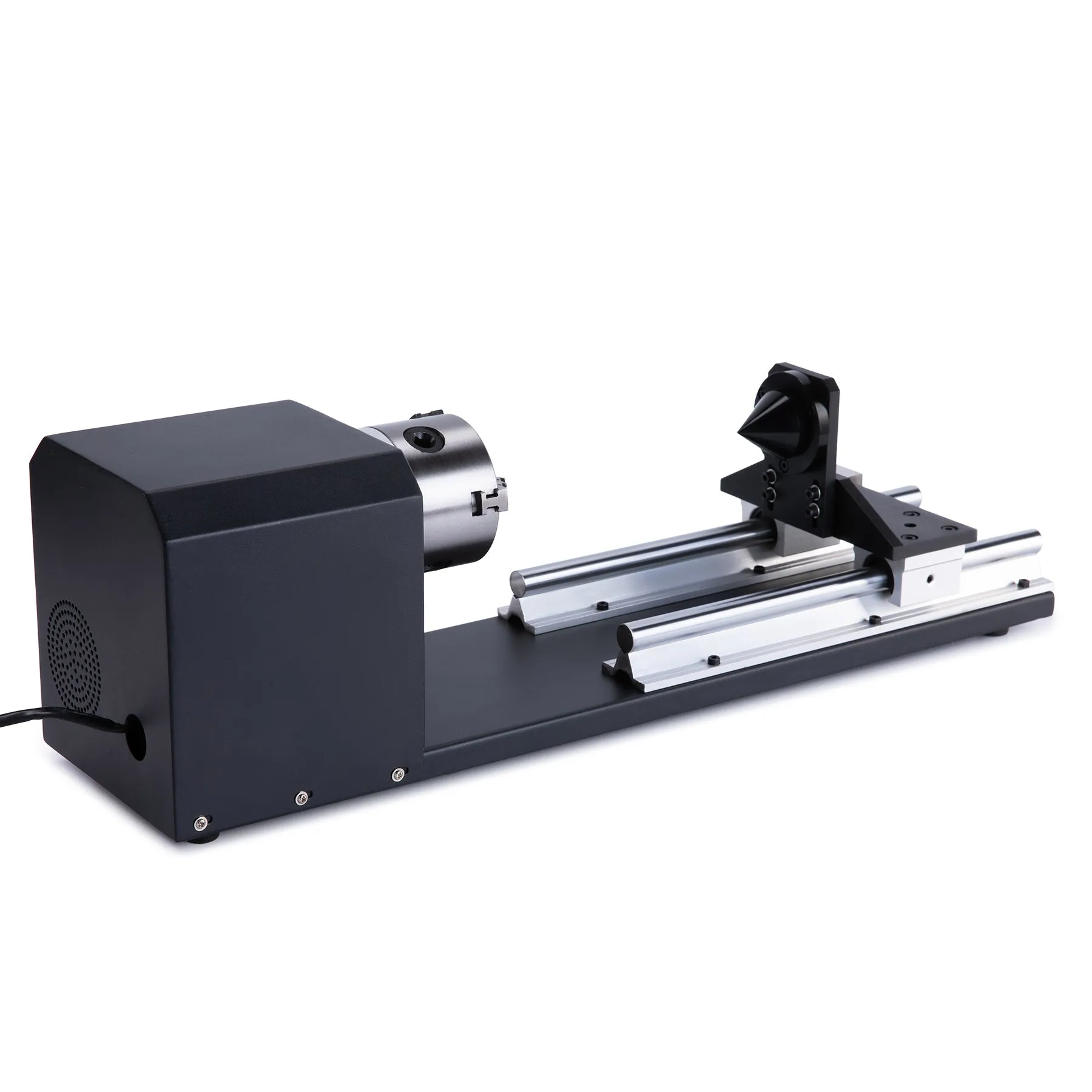

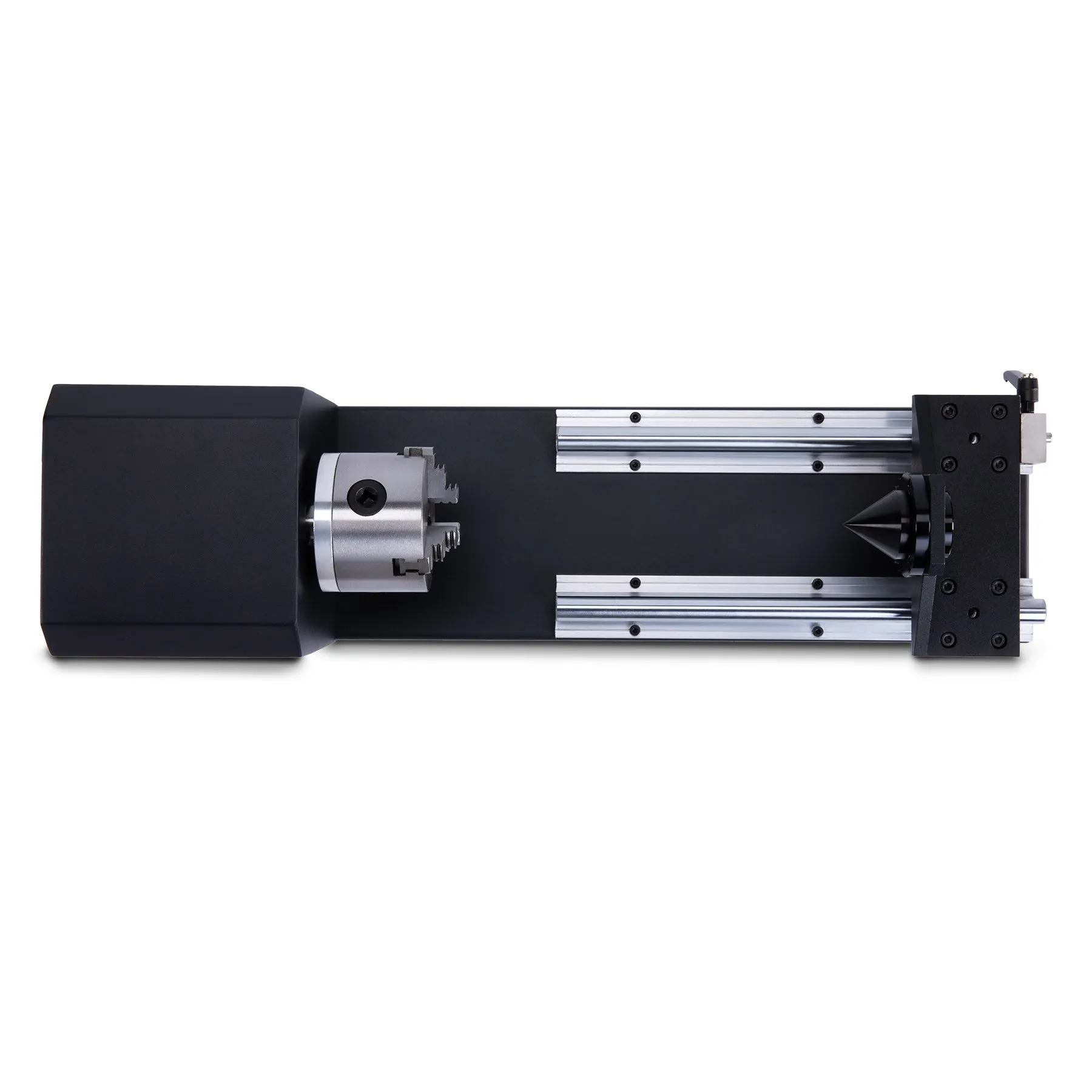

Rotary Axis Description

Overview:

Our innovative rotary axis adds a new dimension to your production by allowing you to engrave on cylindrical or irregularly shaped objects 2 to 22 cm (0.8-8.6") long and 0.5 to 7.9 cm (0.2-3.1") in diameter, such as cups, bottles, tubes, and more! In order to provide accurate positioning and repeatability of movement, our rotary axis attachment uses a quality 2-phase stepper motor which also maximizes your operational stability. Featuring a highly adaptable tailstock that allows you to adjust the thimble length as needed, this auxiliary rotary axis is ideal for workpieces requiring extreme precision.

Convenient Size:

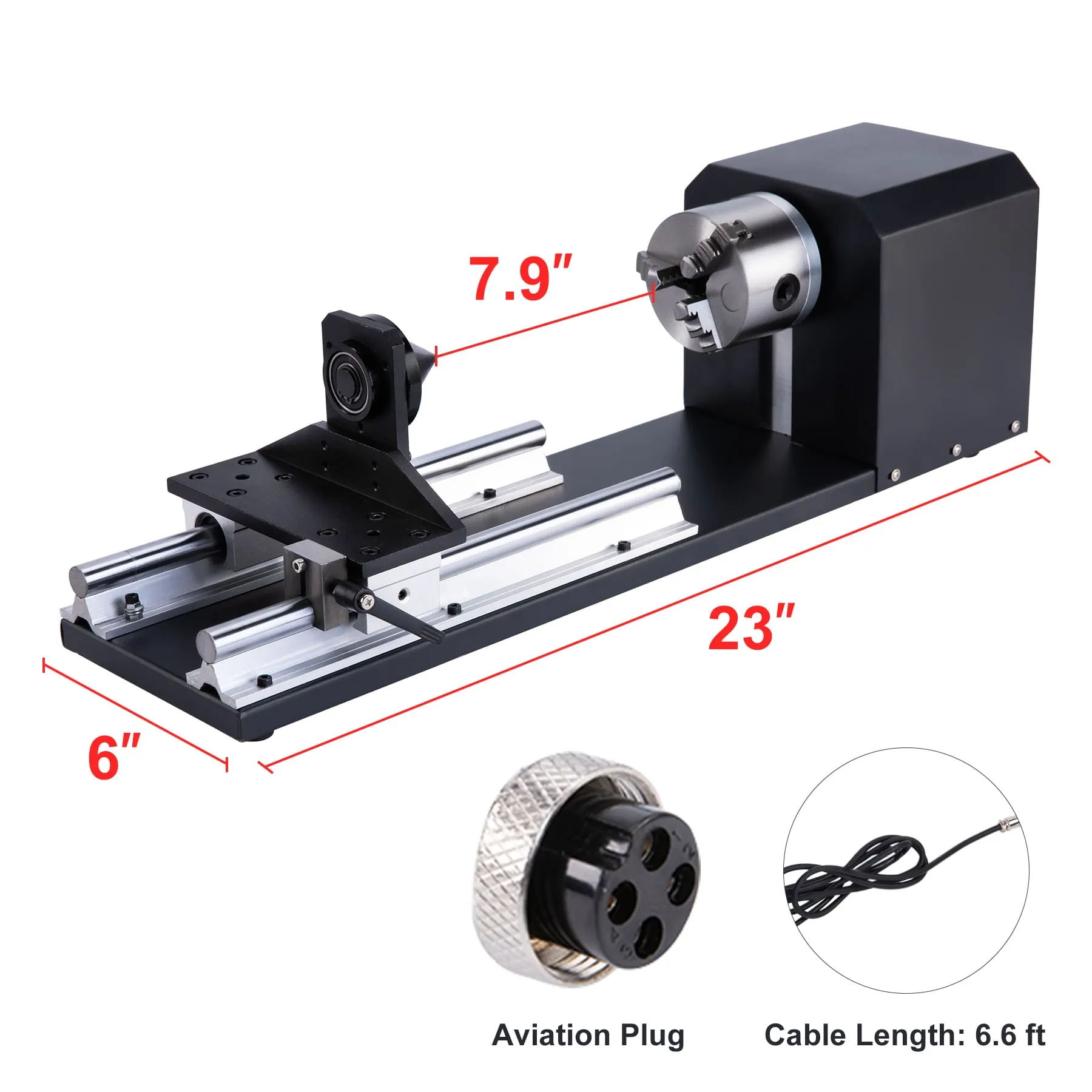

• Dimensions: 58 x 15 x 18 cm (23" x 6" x 7")
• Center Height: 7.5 cm (3")
• Rail Length: 30 cm (11.8")
• Engraving Length: 2-22 cm (0.8"-8.6")
• Engraving Diameter: 0.5-8 cm (0.2"-3.1")
• Net Weight: 9 kg (19.9 lb)
• Fits cylinders up to 10 cm (4") in diameter and 23 cm (9”) long

Cutting Edge Features:

• ENGRAVES ROUND SURFACES: This rotary axis works with most laser engravers 50W or higher to perform 360° engravings on cylindrical and round objects such as cups, bottles, tubes, pipes, bowls, and more!
• WIDE RANGE: This works on objects between 2 to 21.8 cm (0.8 to 8.6") long and 0.5 to 7.9 cm (0.2 to 3.1") in diameter.
• HIGHLY DURABLE: Made of tough iron and aluminum alloy, it features a corrosion-proof coating to ensure long-term & reliable use.
• EASY INSTALLATION: It draws power straight from your laser engraver! Only one cable is required for a quick setup. Connect the 4-pin cable to your engraver and configure the settings in your software to get started.
• SMOOTH & SILENT OPERATION: This rotary accessory features a precision-engineered 3-jaw chuck and tailstock for smooth, efficient, and noise-free operation ideal for DIY, home, or industrial use.

Package Includes:

• 1 x Rotary Axis Attachment

Warranty:

• 1-year warranty on all rotary axis accessories

Summary:

• Engraving cylindrical objects can be tricky. With our Rotary Axis, you can complete your laser masterpieces with ease! Make jaw-dropping designs on bottles, bowls, and engrave your dream creations into reality.
