SKU: LRA-KP58-00

Overview:

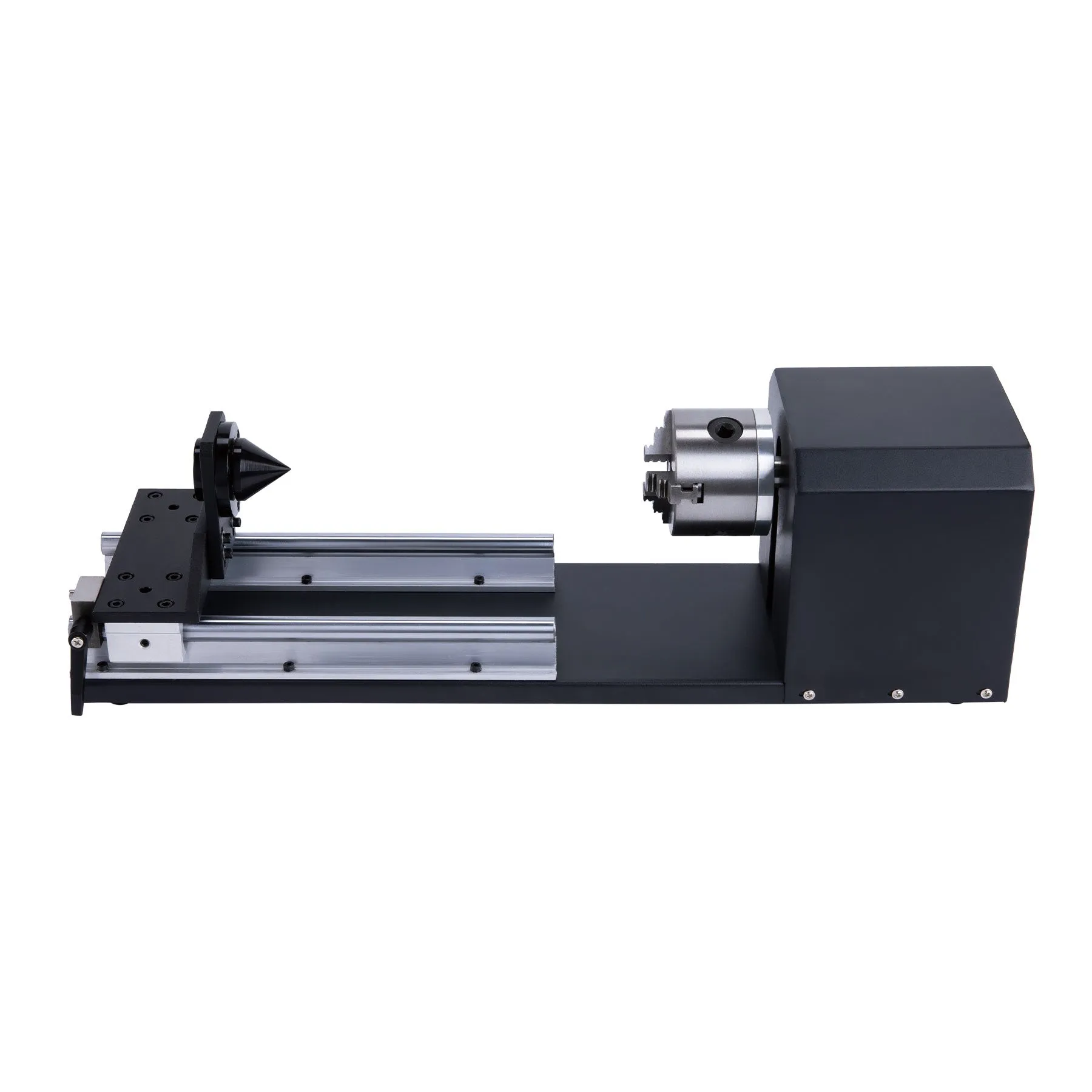

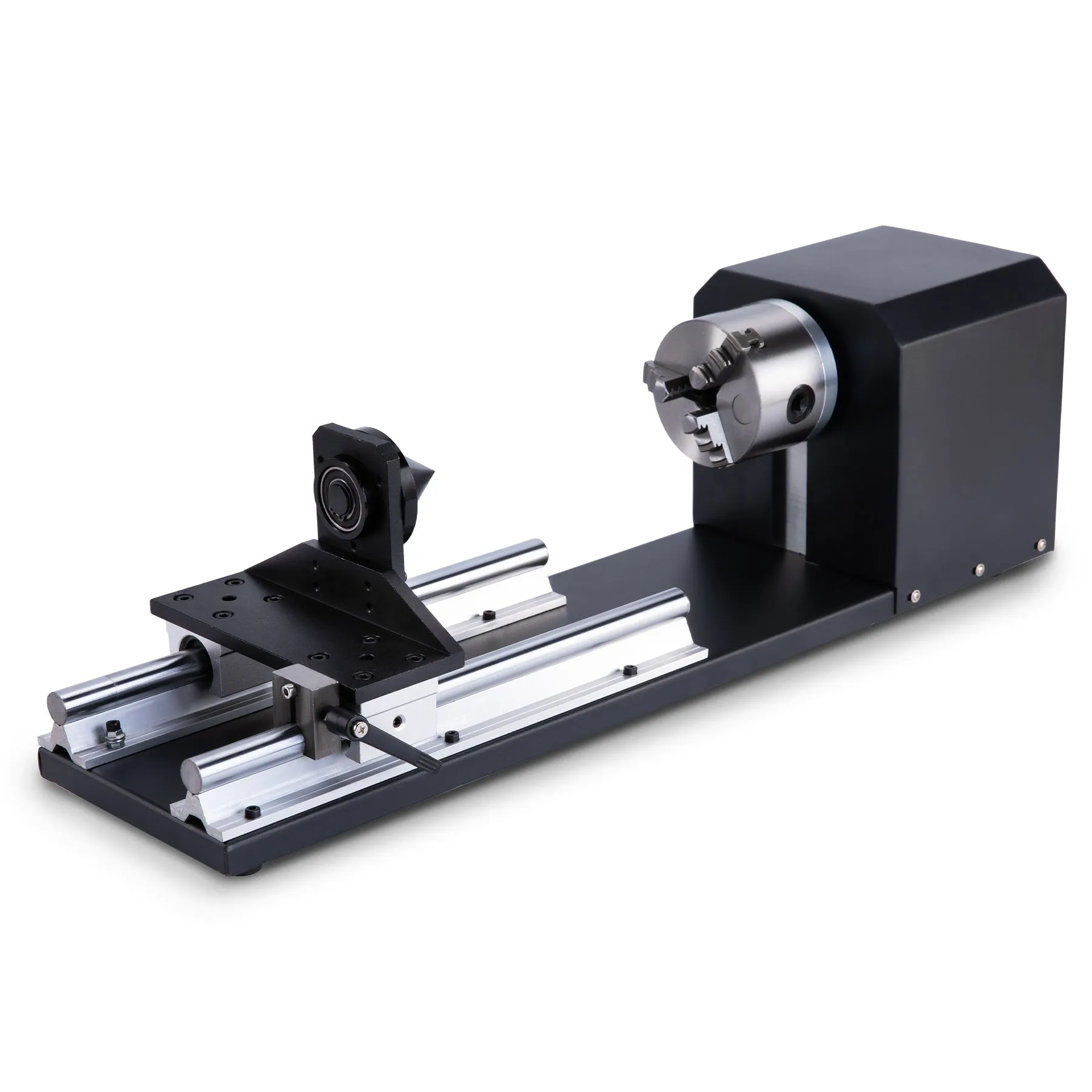

Our innovative rotary axis adds a new dimension to your production by allowing you to engrave on cylindrical or irregularly shaped objects 0.8-8.6 inches long and 0.2-3.1 inches in diameter, such as cups, bottles, tubes, and more! In order to provide accurate positioning and repeatability of movement, our rotary axis attachment uses a quality 2-phase stepper motor which also maximizes your operational stability. Featuring a highly adaptable tailstock that allows you to adjust the thimble length as needed, this auxiliary rotary axis is ideal for workpieces requiring extreme precision.

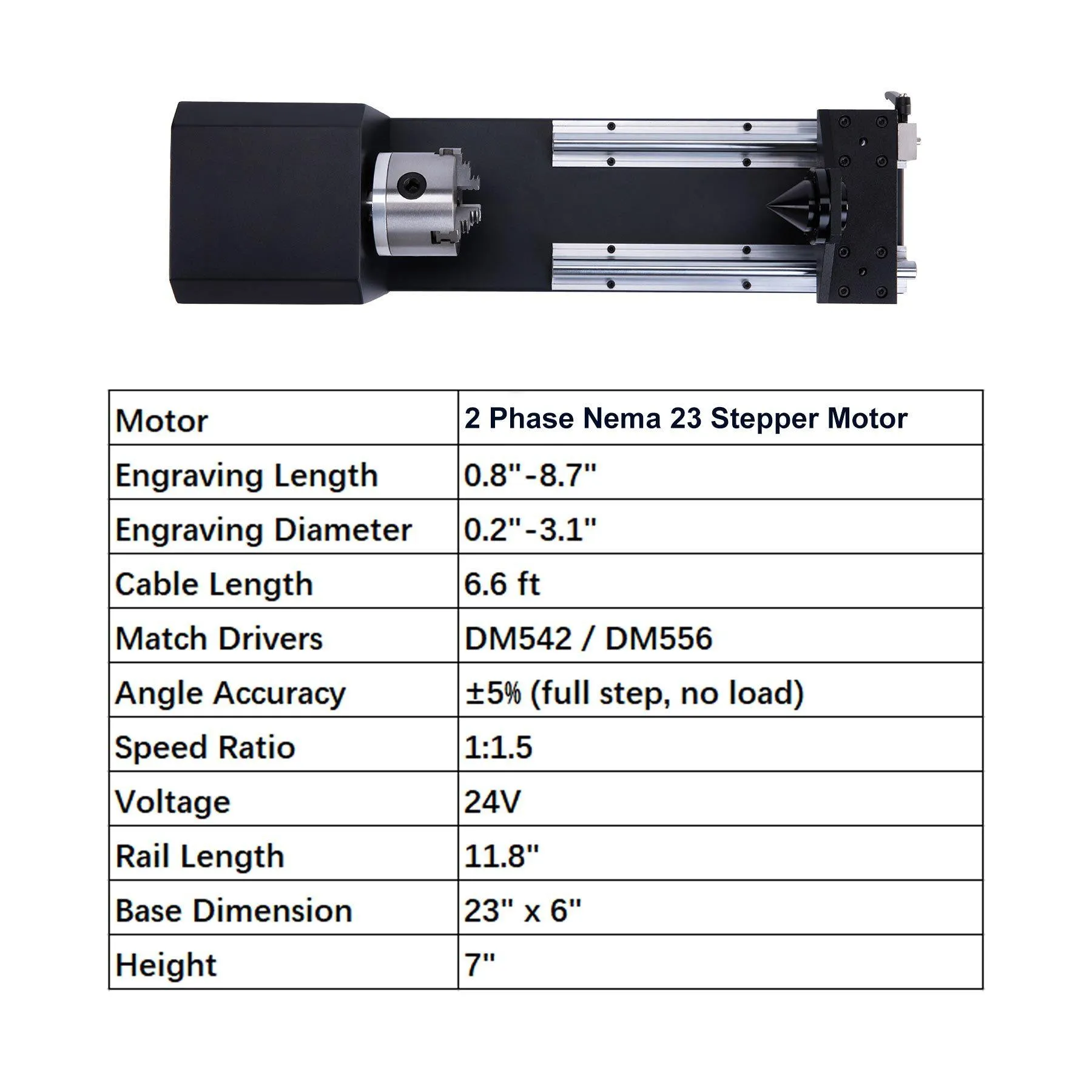

Convenient Size:

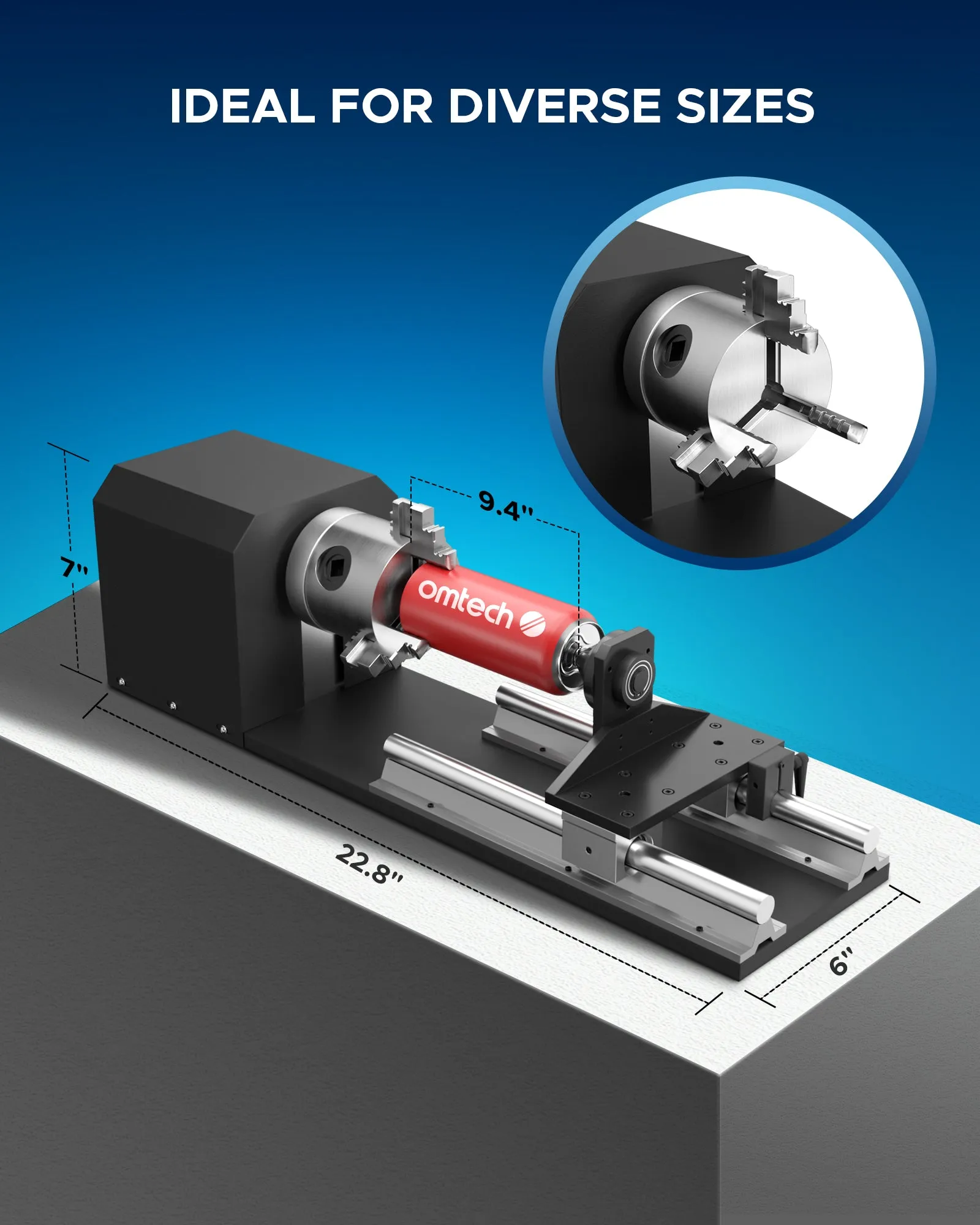

• Dimensions: 23" x 6" x 7" (58 x 15 x 18 cm)
• Center Height: 3" (7.5 cm)
• Rail Length: 11.8" (30 cm)
• Engraving Length: 0.8"-8.6" (2-22 cm)
• Engraving Diameter: 0.2"-3.1" (0.5-8 cm)
• Net Weight: 19.9 lb. (9 kg)
• Fits cylinders up to 100mm diameter and 9” long

Cutting Edge Features:

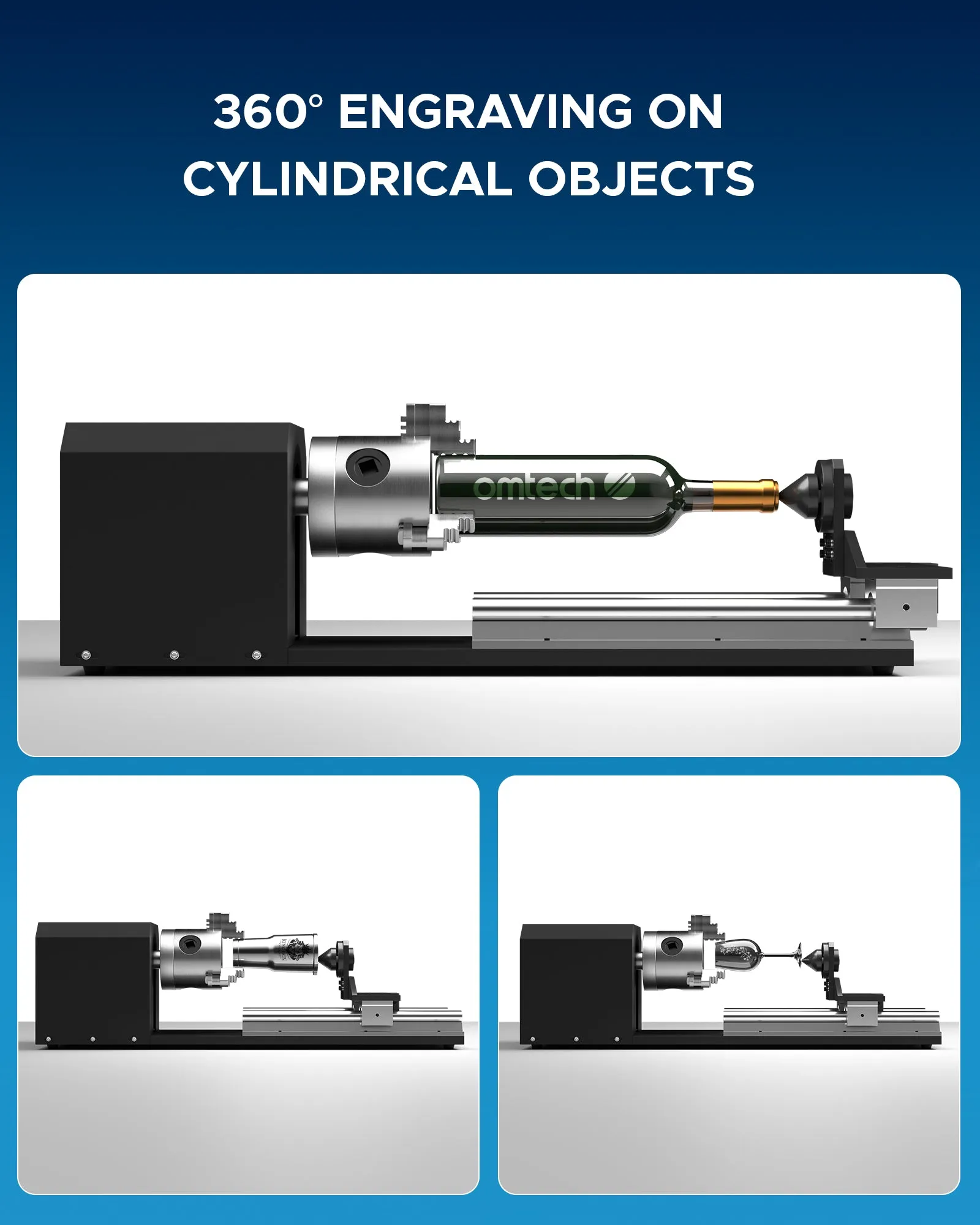

• ENGRAVES ROUND SURFACES: This rotary axis works with most laser engravers 50W or higher to perform 360° engravings on cylindrical and round objects such as cups, bottles, tubes, pipes, bowls, and more!
• WIDE RANGE: This works on objects between 0.8 and 8.6 inches long and 0.2 to 3.1 inches in diameter.
• HIGHLY DURABLE: Made of tough iron and aluminum alloy, it features a corrosion-proof coating to ensure long-term & reliable use.

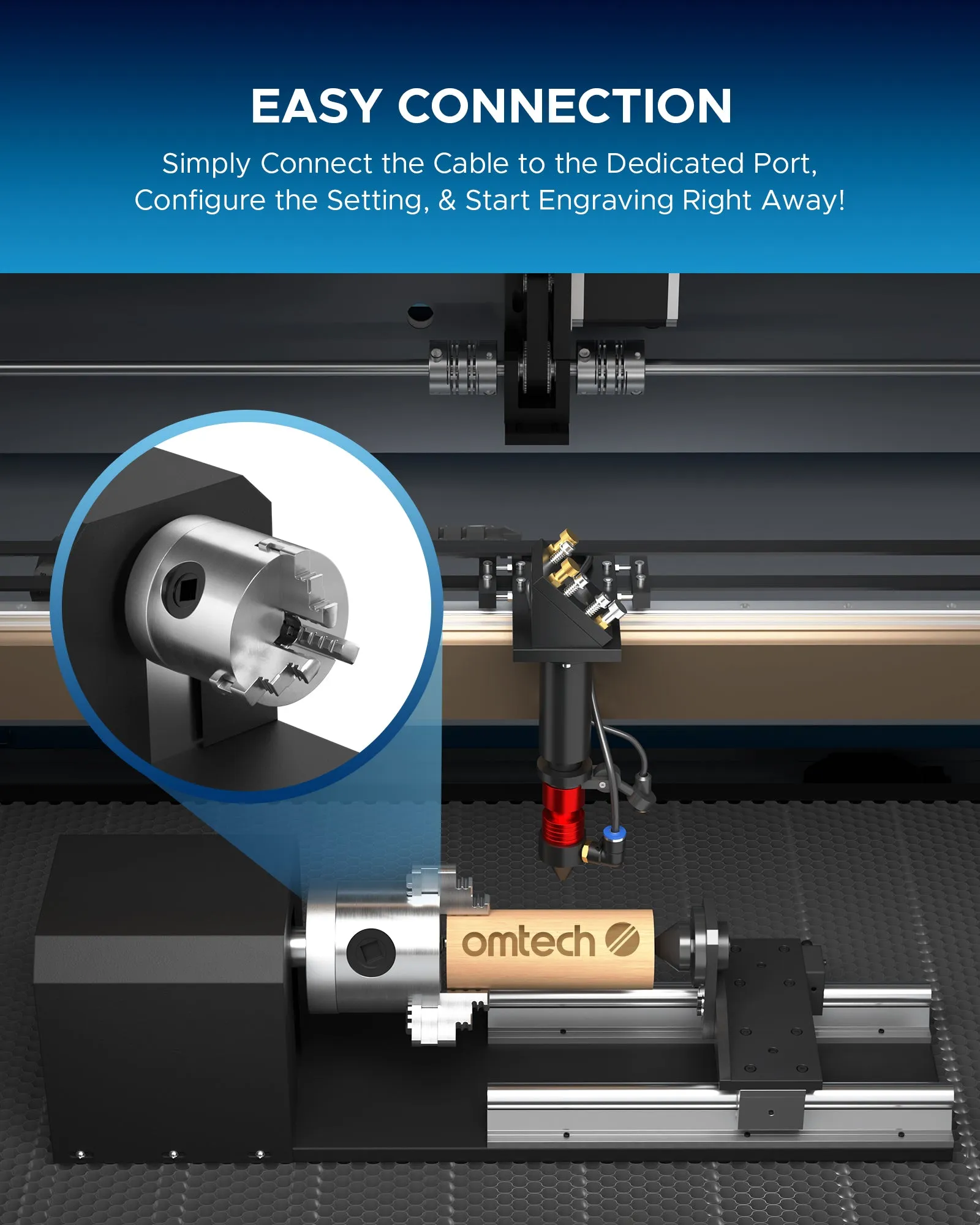

• EASY INSTALLATION: It draws power straight from your laser engraver! Only one cable is required for a quick setup. Connect the 4-pin cable to your engraver and configure the settings in your software to get started.

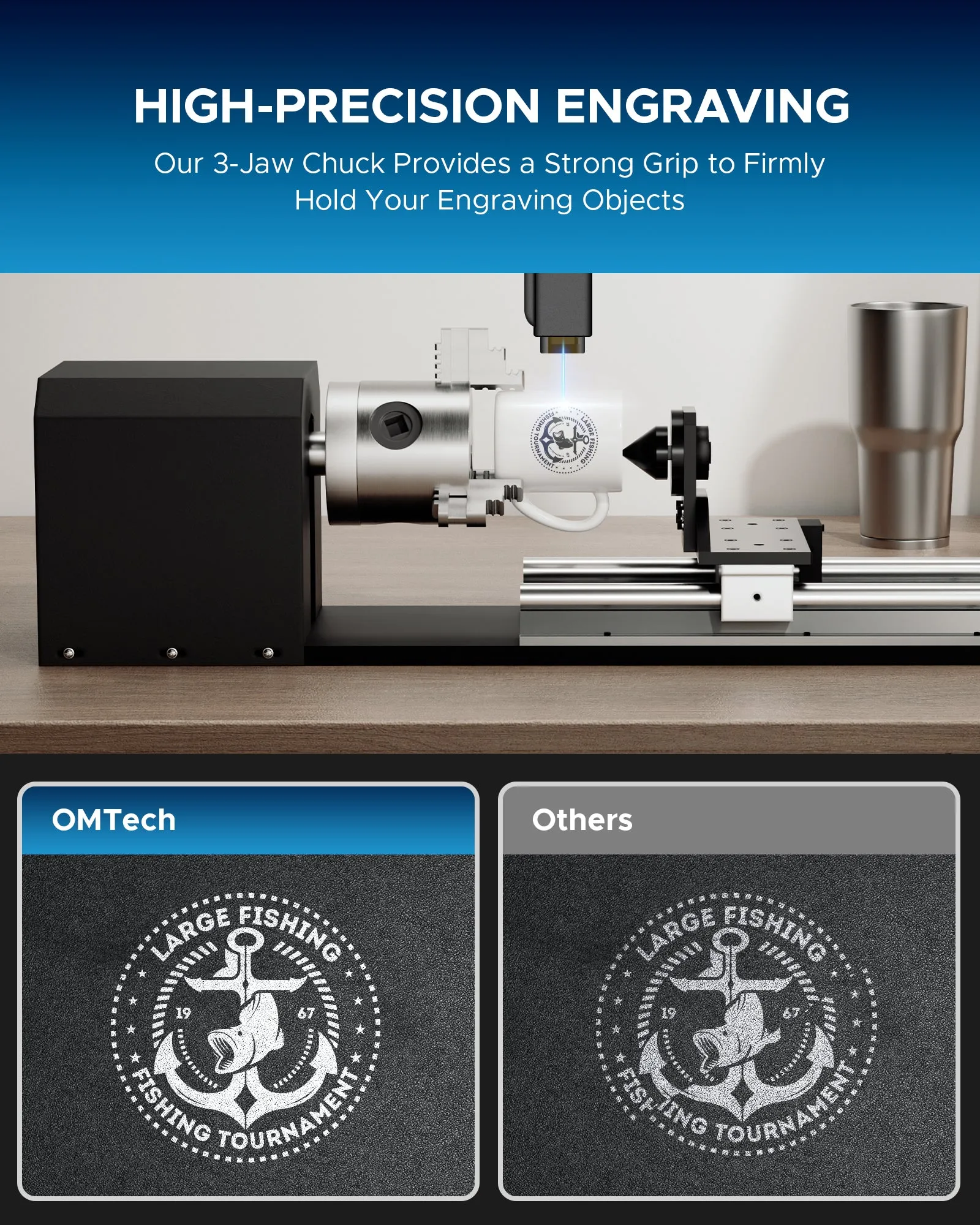

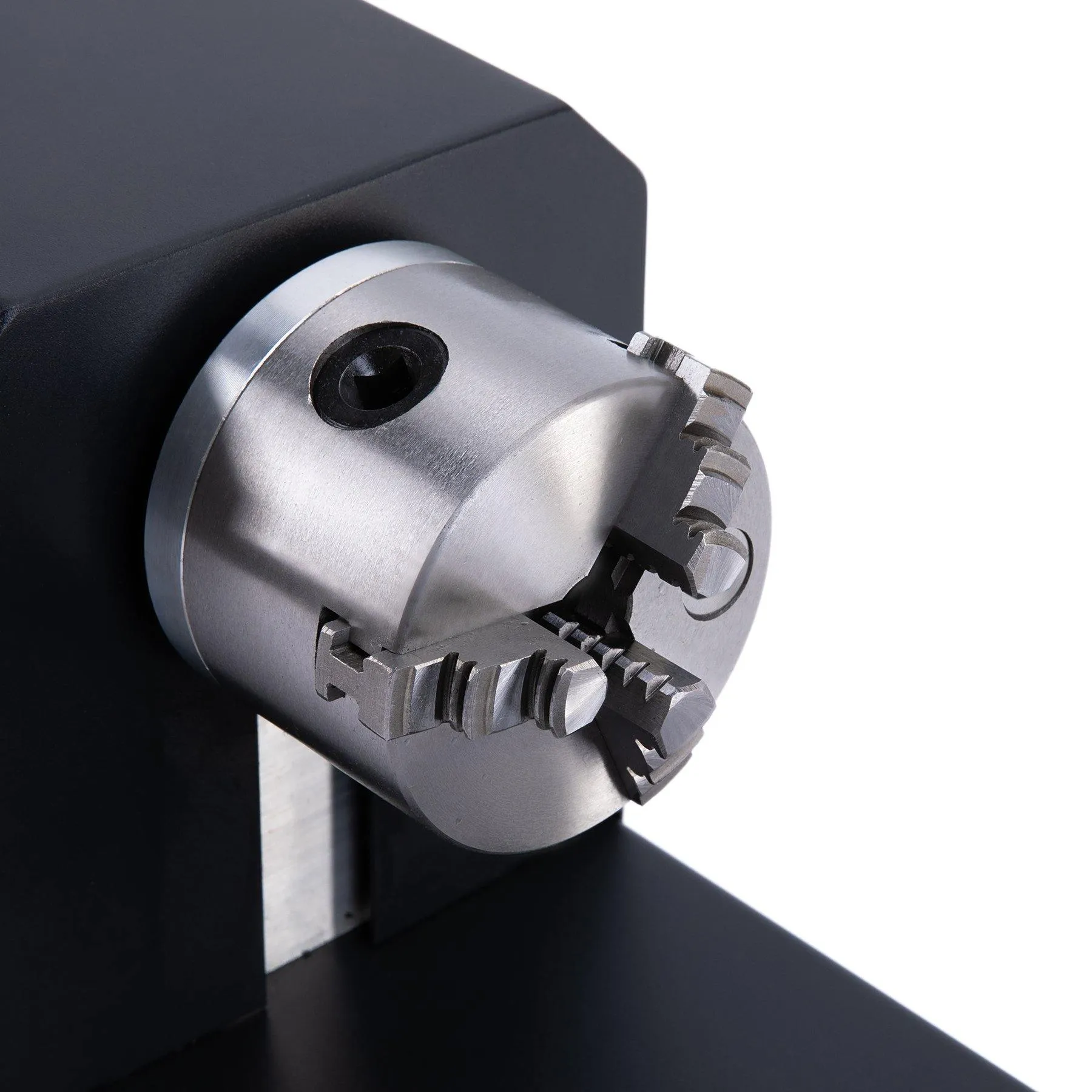

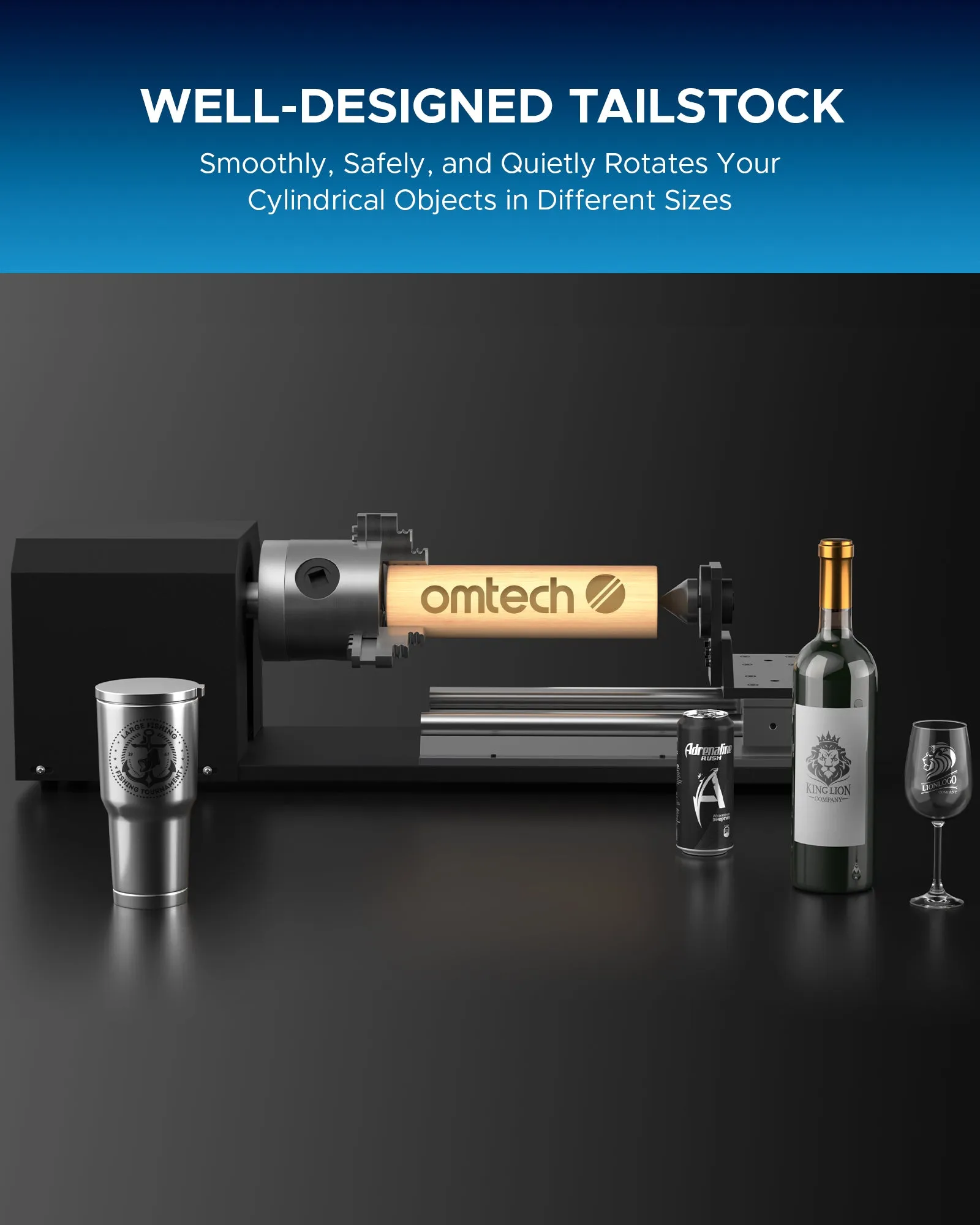

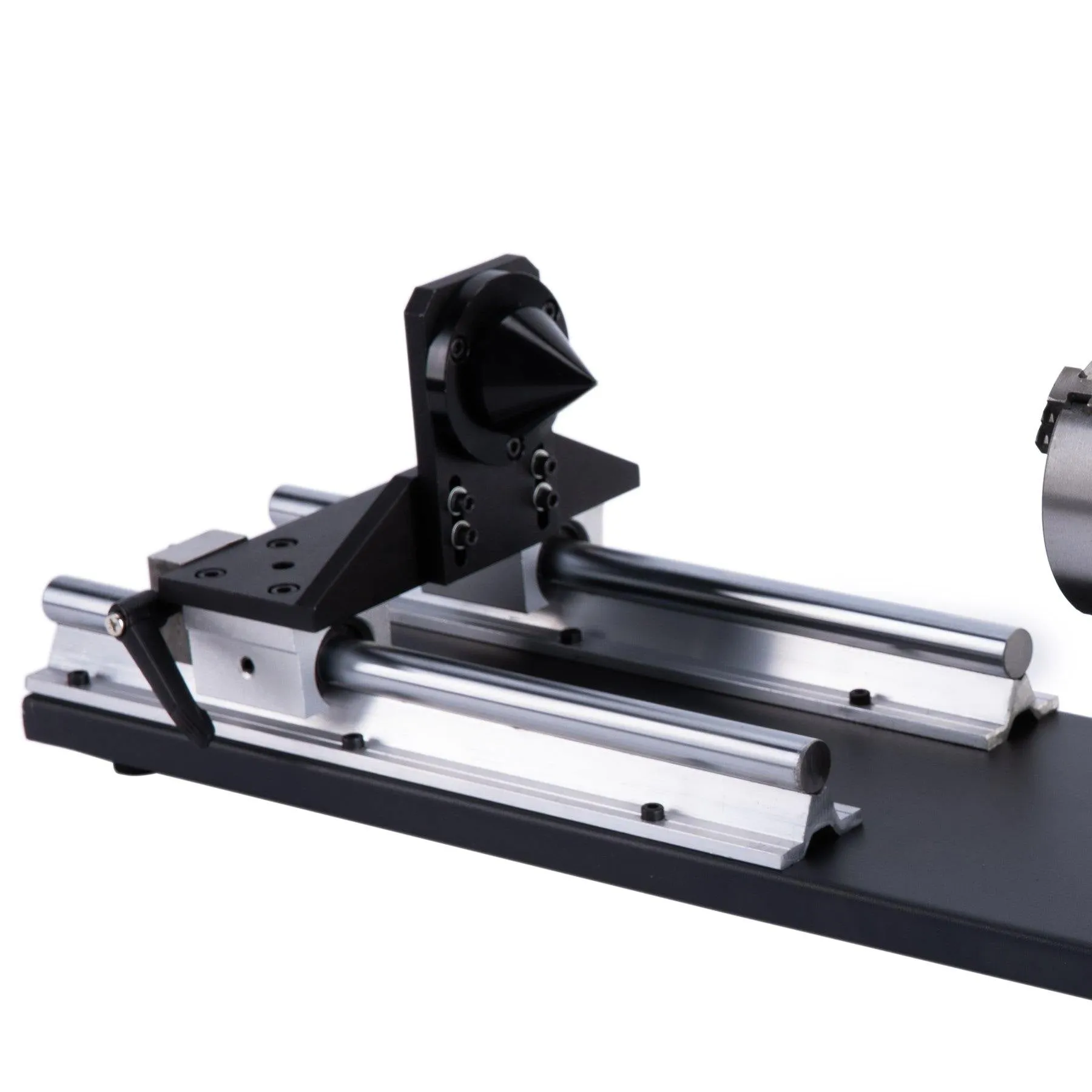

• SMOOTH & SILENT OPERATION: This rotary accessory features a precision-engineered 3-jaw chuck and tailstock for smooth, efficient, and noise-free operation ideal for DIY, home, or industrial use.

Package Includes:

• 1 x Rotary Axis

Warranty:

• 1-year warranty on all rotary axis accessories

Certifications:

• FDA Compliant
• CE Certification
• ISO9001 Quality Certification

Summary:

• Engraving cylindrical objects can be tricky. With our Rotary Axis, you can complete your laser masterpieces with ease! Make jaw-dropping designs on bottles, bowls, and engrave your dream creations into reality.
